STRUCTRUAL STEEL DESIGN AND DETAILING SERVICES :


Since 2016, SET has been offering reliable and robust engineering and detailing solutions arround the World. We have successfully executed more than 50 projects which include a wide portfolio of projects in Commercial, Industrial, Residential, Infrastructural as well as complex specialty structures.

Our software expertise in latest versions of Tekla and AutoCad. Our detailing team ensure that your project can be executed efficiently and scaled up rapidly, decreasing overall project schedule without adding additional cost to our end customer. Our software experts are constantly developing innovative ways to create macros and automations in Tekla to give you the leading edge in projects that can benefit through these methods. We can assist you in all your structural steel detailing needs including Engineering design.

SET will assist your project as your extended team and provide cost effective, high quality drawings. Our strenght and capability is from 20-ton size project to 20,000-ton size project. Our commitment to quality and on-time delivery remains the same.

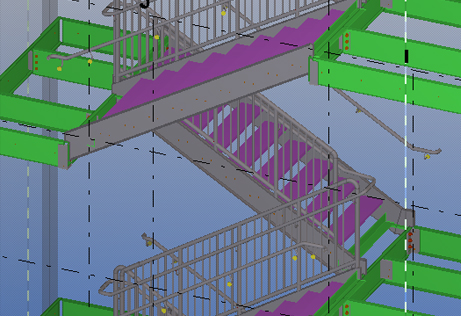

Structural 3D-Tekla Modeling & Drafting Services

 3-D Modeling
Anchor Bolt Plans
GA / Erection Drawing
Shop Drawings ((Columns, Beams, Trusses etc) )
Miscellaneous Members (Staircases, Handrails, Ladders etc)
Part Drawings
Bill of Material List / Material List
Reports
Shop Bolt List
CNC / CAM Files

We have done Structural Steel Detailing For :

Industrial Projects
Hip & valley project
Commercial buildings
Railway station Structures
Institutional Buildings
Church Buildings
Multi-story Buildings

We can deliver the work in following file formats

PDF Files (.pdf)
Drawing Files (.dwg)
DXF Files (.dxf)
NC Files (.nc1)

“We provide customized G.A. & Fabrication drawings as per client requirement”

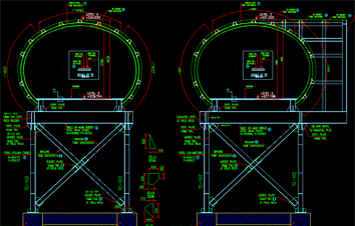

STRUCTURAL STEEL 2D Detailing & Drafting Services :

 Our team of engineers and draftsmen also work on hand sketches or concepts given by clients. We work on input formats like dwg, dwf, dxf, images like TIFF, JPEG, PDF FILES, and hand drawn sketches. We provide output formats like dwg, dxf, dwf, PDF, TIFF, JPEG as per client's requirement. We provide cost effective, high quality and time bound services for Structural 2D Detailing and Drafting.

Our Structural 2D Detailing & Drafting Services includes following Area :

Structural Layouts
Approval Drawings & Erection Drawings
Fabrication Shop Drawings
Bill of Material / Shipper
